Why Precision During Installation, Alignment and Drilling Matters
Small errors early in a cabinet install rarely stay small. A panel that sits a fraction out of square throws the doors off line, and a handle drilled a few millimetres off centre is visible from across the room. This guide from DeFrixo covers how to improve cabinet installation precision through better reference points, repeatable jigs and a disciplined checking sequence.
The core problem is not skill. Most fitters have plenty. It is that the human eye is poor at comparing two points that sit a metre apart, and tape measures introduce their own small errors every time you re-measure. When you re-measure the same gap five times, you get five slightly different numbers.
Good cabinet installation precision comes from removing repeated judgement calls. Instead of asking "does this look level?", you set up a reference that either matches or does not. That shift, from eyeballing to matching, is what separates a fast install from a slow one.
Below, we break down the four stages where precision is won or lost: assembly, levelling, drawer front spacing and handle drilling.
Using a Cabinet Assembly Jig for Square Panels
A cabinet assembly jig holds panels at 90 degrees while you fix them, so the box goes together square rather than being forced square afterwards. DeFrixo's CabinetMate jigs are designed for standard 18mm boards and include integrated screw guides.
The workflow is straightforward:
- Position the jigs at the corners of the carcass
- Hold the panels against the jig faces so the joint sits at 90 degrees
- Drive screws through the integrated guides while the panels are held
- Check the diagonal measurements before moving on
What most guides miss is that the jig holds the joint, not the whole cabinet. A carcass can still twist if the floor is uneven or the back panel pulls it out. Always verify the finished assembly with a diagonal check. The jig makes square easier to reach; it does not remove the need to confirm it.

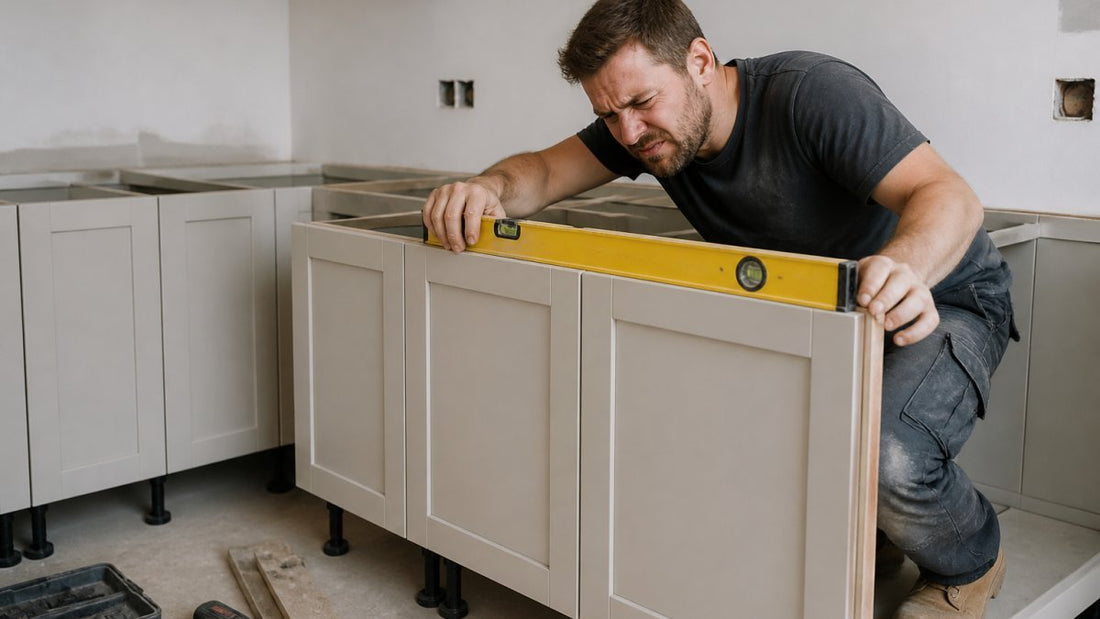

How to Level Kitchen Cabinets Before Fixing Handles
Level the cabinet run before you drill a single handle hole. Handle positions are set relative to the cabinet, so if the cabinet moves afterwards, every handle moves with it. Getting the run level first is the single biggest factor in how to level kitchen cabinets without rework.
Setting Up a Line Laser with Reference Markers
A line laser gives you a consistent horizontal reference, but clearly visible reference points at each cabinet position can make comparing multiple corners easier.
AlignPro Laser Level Markers are manufactured to consistent heights and carry fixed reference lines. Place them at the cabinet corners, set the line laser so it crosses one reference line on the first marker, then leave the laser alone. Adjust each cabinet corner until the laser crosses the same reference line on every marker.
The markers do not produce the laser line and they do not hold the laser level. They give you visible, repeatable reference points at several positions at once.
Checking Front and Rear Corners Before Final Fixing
Work along the run and check each cabinet at both the front and rear corner before you fix anything down. Bring one corner onto the reference line, then its opposite corner, then move to the next cabinet.
Two habits matter here:
- Adjust feet in small increments and re-check after each turn
- Confirm the whole run, not just the cabinet you last touched
Markers make the comparison visible, but they do not replace your final level check. Treat them as a faster way to get close, then verify with your own method before fixing.
Drawer Front Spacing Gauges for Consistent Gaps
Drawer front spacing gauges are physical spacing references that set the gap between drawer fronts and similar components. Instead of measuring each gap with a tape, you slot the gauge in and the gap is set.
This matters because drawer front gaps are read as a set. A run of four drawers with three slightly different gaps looks wrong even if each individual gap is within tolerance. Gauges remove the repeated measuring and, more importantly, remove the variation between one gap and the next.
The practical sequence:
Cabinet & Drawer Handle Drilling Jig – Adjustable Template with 5mm Guide →
- Fit the drawer fronts loosely
- Insert the gauge at each gap position
- Nudge the front until it sits against the gauge
- Tighten, then move to the next gap
Work in one direction along the stack rather than jumping around. It keeps your reference consistent.
A Cabinet Handle Drilling Jig for Repeatable Hole Positions
A cabinet handle drilling jig sets the same drilling position across multiple doors and drawer fronts. DeFrixo's Cabinet & Drawer Handle Drilling Jig is an adjustable template with integrated 5mm guide bushings, so you drill straight through the template without pre-marking.
The specification that matters most is hole spacing. This jig supports handle centres up to 192mm, and offers vertical positioning at 30, 50, 70, 90 or 110mm. Set the spacing once, then repeat it across every front in the kitchen.
Stage |
What the jig controls |
Why it matters |
|---|---|---|
Hole spacing |
Centres up to 192mm |
Handles line up across the run |
Vertical position |
30, 50, 70, 90 or 110mm |
Consistent height on every door |
Drill guidance |
5mm guide bushings |
No pre-marking, less wandering |
Repeatability |
Same setup reused |
Identical result on every front |
Common Mistakes That Undo Installation Precision
Three mistakes account for most precision failures on site. None of them are about skill; all of them are about sequence.
Levelling after drilling. Handles, hinge plates and drawer fronts are all positioned relative to the cabinet. Level the run first, then drill. Doing it the other way round means every position is set against a cabinet that later moves.
Re-measuring instead of referencing. Measuring each gap, each handle and each cabinet corner individually introduces a fresh error every time. A jig or a marker sets the reference once and repeats it. That is the whole point.
Skipping the final check. Jigs and markers get you close and keep you consistent, but they do not replace your own verification. Check the finished assembly, check the run, check the gaps. Conservative wording here is deliberate: no tool guarantees a perfect install.
Building Precision into Your Installation Workflow
Precision is a workflow decision, not a tool purchase. The fitters who get consistent results are the ones who set up references early and reuse them, rather than solving each cabinet as a fresh problem.
A simple order of work that holds up on most kitchen installs:
- Assemble carcasses with a jig and check diagonals
- Set the line laser and place markers at front and rear corners
- Level the full run before fixing anything down
- Set drawer front gaps with a gauge, working in one direction
- Set the handle jig once and repeat across every front
- Verify the finished run before you leave the room
DeFrixo makes precision installation tools for cabinet fitting, kitchen installation and woodworking, designed to make these steps repeatable rather than reliant on guesswork. If you want to see how the reference markers and drilling jigs fit into your own workflow, the official DeFrixo product range is the place to start.
For background on safe working practice and tool handling on site, the Health and Safety Executive guidance for construction work is worth a read. And if you are specifying cabinetry for a project, the British Standards Institution information on furniture standards covers the relevant product standards.
Cabinet installation rewards preparation more than speed. If you want fewer re-checks, fewer replaced fronts and a run that reads as one clean line, DeFrixo's precision tools are built for exactly that. The AlignPro Laser Level Markers give you matching reference points across every cabinet corner, CabinetMate jigs hold panels at 90 degrees during assembly, and the adjustable handle drilling jig repeats the same hole position across every front. Get started with DeFrixo and build precision into the workflow from the first cabinet.
Frequently Asked Questions
How do you level kitchen cabinets accurately?
Start by finding the highest point of the floor and work from there, using the cabinet’s adjustable feet where possible and suitable packing where necessary. A line laser gives you a consistent horizontal reference. Placing reference markers at the front and rear corners of each cabinet makes the laser visible at both points, so you can bring every corner onto the same plane before fixing. Finish with a final level check across the run, since the laser and markers guide the work but do not replace that last verification.
How do you drill consistent holes for cabinet handles?
The main problem is repeating the same measurement across every door and drawer front without drifting. A cabinet handle drilling jig removes that repetition by holding a fixed drilling position and letting you drill directly through integrated 5mm guide bushings, so no pre-marking is needed. The DeFrixo jig supports handle centres up to 192mm and offers height offsets at 30, 50, 70, 90 or 110mm, which covers most kitchen and wardrobe layouts.
How do you keep cabinet doors and drawer fronts evenly spaced?
Even gaps come down to using the same physical reference every time rather than measuring each gap separately. Drawer front spacing gauges act as fixed spacing references: you set the gap once with the gauge, align the front, and move on. This keeps gaps consistent across a run of drawers without repeated tape-measure work, and it makes matching up adjacent doors and fronts far quicker on site.
What tools help keep cabinet panels square during assembly?
A cabinet assembly jig is the practical answer. CabinetMate holds panels at 90 degrees at four points and includes screw guides so boards stay put while you fasten them. It is designed for standard 18mm boards and comes as a set of four. It stabilises panels during joining and reduces movement, but you should still check the finished carcass for square before it goes into the run, as the jig supports the work rather than replacing that check.
