What Separates a Professional Cabinet Assembly Jig from a Basic One

A professional cabinet assembly jig holds panels at a fixed angle while you fix them, so the joint stays true without a second pair of hands. Basic versions do one job. Professional versions do three: they position, they hold, and they guide the fixing.

The best cabinet assembly jigs for professional joinery are the ones that survive daily site abuse and still put the same reference point in the same place on cabinet number forty as they did on cabinet number one. DeFrixo builds durable, easy-to-use equipment in Glasgow, and this guide breaks down which jig type suits which part of the build.

Here is the thing most tool roundups skip: the jig is only half the system. How you reference level across a run of units matters just as much as how you square a single box.

The Three Jobs Every Assembly Jig Must Do

Every jig worth carrying in the van does three things. It holds the panel at the correct angle. It resists movement while the screw goes in. And it repeats that position on the next cabinet without recalculation.

Miss any one of those and you are back to clamping and hoping.

• Position: sets the angle before you commit
• Hold: keeps the panel stable through the fixing
• Repeat: delivers the same result on the next unit

That third job is where cheap jigs fall down.

Quick Comparison: CabinetMate Jigs and Alignment Tools

CabinetMate covers the assembly side of the workflow, from squaring a box to spacing drawer fronts. The table below maps each tool to its job and price so you can pick the pieces you actually need.

Why 90° Corner Jigs Matter for Cabinet Installation Tools

A corner jig is the difference between a box that sits flat and a box that fights you at every carcass joint. CabinetMate's 90° jigs give four-point support while you position boards, and the integrated screw guides let you fix without the panel shifting under the drill.

The set of four is designed for standard 18mm boards, which covers most kitchen carcasses you will meet on site. Four jigs means you can work a full box rather than chasing one corner at a time.

One honest limitation: the jig holds the angle, it does not certify the finished cabinet. Check diagonals before you commit to a run, every time.

T-Jigs: The Solution for Middle Shelves and Partitions

The T-jig exists because a corner jig cannot help you when a panel meets another mid-span. CabinetMate's T-Jigs hold boards in position for a true T-joint, which is what you need for middle shelves, internal dividers and structural partitions.

The two-piece set is built heavy-duty for repeated use. Setup is quick, there are no adjustments to fiddle with, and the reference stays consistent across a batch of carcasses.

T-joints can be awkward to hold accurately while fixing. A panel may shift as screws are driven, leaving the shelf or divider out of position. A T-Jig holds the panels in alignment during assembly, helping reduce movement while the joint is being fixed.

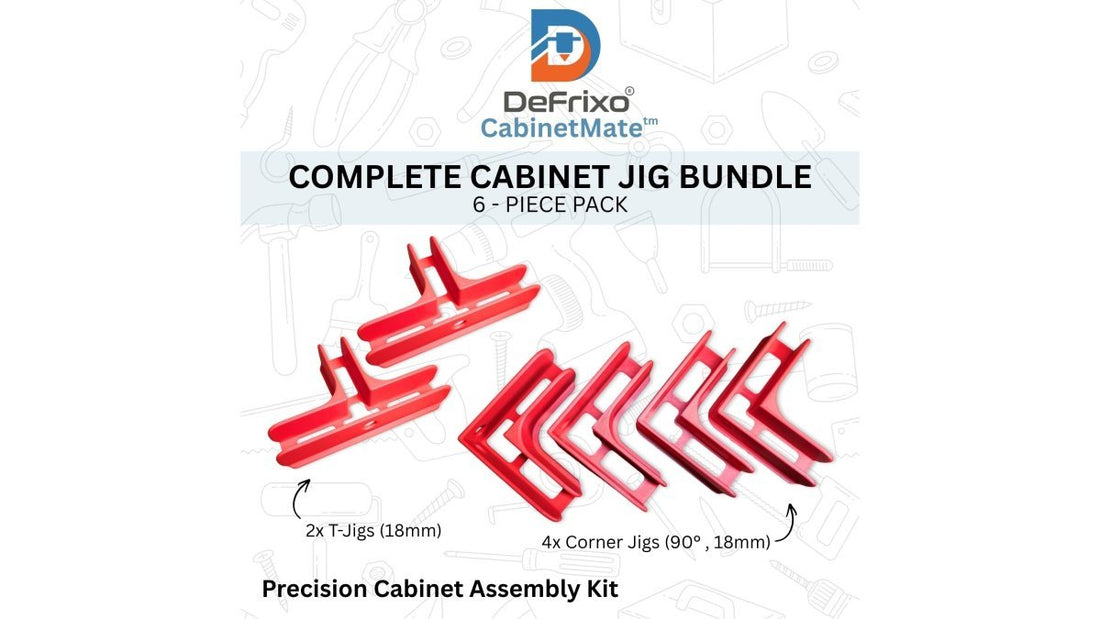

If you build both boxes and partitions, the 6-piece bundle combines four corner jigs with two T-Jigs for £44.95.

Drawer Front Alignment Tools: Spacer Gauges and Handle Jigs

Drawer fronts and handles are where a good install gets judged, because the eye catches uneven gaps instantly. Two small tools solve both problems.

Spacer Gauges for Consistent Gaps

DeFrixo's spacer gauge set gives you physical 2mm, 3mm and 4mm references for drawer front alignment, sized for 18mm panels. Instead of measuring each gap, you slot the gauge and fix.

The set includes six gauges with rounded corners to help prevent surface marks on finished fronts. Consistent gaps across a run stop being a matter of patience and become a matter of using the right spacer.

CabinetMate™ Cabinet Assembly Jigs →

Handle Drilling Jigs for Repeatable Hole Positions

The adjustable handle drilling jig uses integrated 5mm guide bushings so you can drill straight through the template without pre-marking. Handle centres adjust up to 192mm, with vertical offsets at 30, 50, 70, 90 or 110mm.

Repeatable hole positions across twenty doors is the whole point. Mark each one by hand and eventually one drifts.

Laser Level Referencing for Cabinets: AlignPro Markers Explained

AlignPro markers are fixed-height reference points that work alongside a line laser. They do not produce the beam. The laser does that.

Here is the workflow. Place markers at the cabinet corners you need to compare. Set the line laser so the beam crosses one reference line on the first marker, then leave the laser alone. Adjust each cabinet foot until the beam crosses the same line on every marker.

The real gain is visibility. Using the cabinet edge as a reference often works at the front and fails at the rear, where you cannot see the beam. Markers at the corners give you a visible reference at both ends.

Versions include Lightweight, Heavy Base with a 10g metal core, and Magnetic for attaching to metal brackets or screws. TallBoy adds raised reference heights of 120 mm, 130 mm, 140 mm for floor levelling, where a standard marker sits too low. Red markers are designed to provide strong contrast when working with green laser beams. Green markers are designed to provide strong contrast when working with red laser beams.

They do not replace the laser, and they do not replace your final level check.

Common Mistakes When Using Cabinet Assembly Jigs

Most jig problems come down to three habits. Fix these and the tools do their job.

The pattern is the same in each case: the tool was fine, the sequence was wrong.

A common mistake is treating a jig as a substitute for checking. It is not. It is a way of making the check pass more often.

Conclusion

The real challenge with cabinet assembly jigs is not finding them, it is sequencing them correctly across a full install, from carcass to drawer front to final level. Get that order right and repeatability follows.

DeFrixo makes that easier with tools built for the workflow: CabinetMate jigs for 90° corners and T-joints, spacer gauges for consistent drawer gaps, a handle drilling jig with 5mm bushings for repeatable positions, and AlignPro markers for laser level referencing across a run. Each one removes a measurement you would otherwise repeat by hand.
